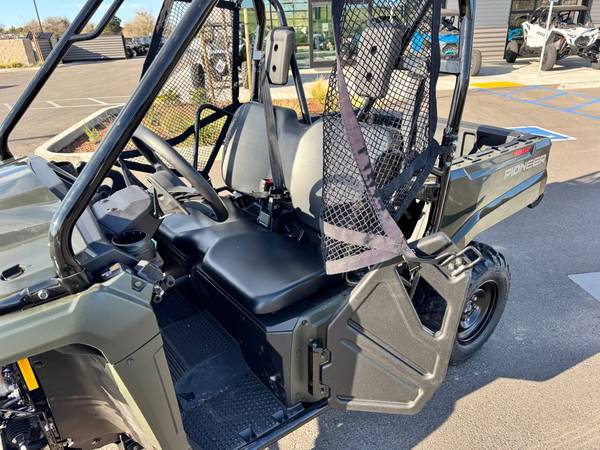

2026 Honda Pioneer 520 - $10,999

• Year: 2026
• Make: Honda
• Model: Pioneer 520
• Trim: Base
• Stock Number: HON102938
• VIN: 1HFVE0746T4102938
• Condition: New
• Type: Utility
• Primary Color: GREEN

• Frame: Steel
• Front Travel (in): 5.8
• Front Travel (mm): 147.3
• Number Rear Shock Absorbers: 2
• Rear Adjustable Shock / Spring Pre-Load
• Rear Stabilizer Bar
• Rear Suspension Material: Steel
• Rear Travel (in): 5.9
• Rear Travel (mm): 149.9
• Steering Control: Steering Wheel
• Steering Type: Rack & Pinion
• Suspension - Front: Independent Double Wishbone
• Suspension - Rear: Independent Double Wishbone

• Clock
• Digital Instrumentation
• Hour Meter
• Seat Material: Vinyl
• Seat Type: Bucket

• Transmission Type: Manual / Automatic Clutch
• Engine Braking System
• Differential Lock
• Differential Lock Location: Rear
• Driveline Brand: TraxLok
• Driveline Type: Selectable 4X2 / 4X4
• Number Of Driveline Modes: 2
• Hi / Low Range
• Number Of Speeds: 5
• Primary Drive (Front Wheel): Shaft
• Primary Drive (Rear Wheel): Shaft
• Reverse

• Bore (in): 3.78
• Bore (mm): 96
• Carburetion Type: Fuel Injected
• Compression Ratio: 9.5
• Cylinders: 1
• Displacement (ci): 31.6
• Engine Cooling: Liquid
• Engine Size (cc): 518
• Engine Stroke: 4-Stroke
• Fuel Capacity (gal): 4.1
• Fuel Capacity Reserve (gal): 1.1
• Fuel Capacity Reserve (l): 4.2
• Fuel Injector
• Fuel Injector Size (mm): 36
• Fuel Requirements: Regular
• Starter Type: Electric
• Stroke (in): 2.81
• Stroke (mm): 71.5
• Valve Configuration: OHV
• Valves: 4
• Valves Per Cylinder: 4

• Cab / Bed Divider
• Cab Cage
• Cab Doors
• Cab Doors Material: Soft
• Cab Rollbar
• Front Fender Flairs
• Power Outlet
• CV Boot Cover
• Brush Guard
• Radiator Guard

• Brakes - Front: Dual Hydraulic Disc
• Brakes - Rear: Hydraulic Disc
• Front Brake Diameter (in): 7.9
• Front Brake Diameter (mm): 200
• Rear Brake Diameter (in): 6.7
• Rear Brake Diameter (mm): 170
• Seat Belts
• Halogen Headlight(s)
• Headlight(s)

• Bash Plate (Front)
• Bed Capacity (kgs.): 204.1
• Bed Capacity (lbs.): 450
• Body Material: Plastic
• Cargo Bed Bed Height (in): 9.8
• Cargo Bed Bed Height (mm): 249
• Cargo Bed Bed Length (in): 25.9
• Cargo Bed Bed Length (mm): 658
• Cargo Bed Bed Width (in): 38.7
• Cargo Bed Bed Width (mm): 983
• Cargo Bed Tilt
• Front Tire Diameter (in): 24
• Front Tire Width: 8
• Ground Clearance (in): 8.5
• Ground Clearance (mm): 215.9
• Height (Inches): 71
• Height (mm): 1808.5
• Length (mm): 2667
• Rear Hitch
• Rear Tire Diameter (in): 24
• Rear Tire Width: 10
• Towing Capacity (kgs): 453.6
• Towing Capacity (lbs): 1000
• Turning Radius (ft): 12.8
• Wet Weight (kg): 481
• Wet Weight (lbs): 1060
• Wheelbase (in): 73
• Wheelbase (mm): 1854.2
• Wheels Composition: Steel
• Width (Inches): 50
• Width (mm): 1270

NEW LOCATION NOW OPEN!!!!

CALIFORNIA CUSTOM TRAILERS AND POWERSPORTS

3031 UNION RD.

PASO ROBLES, CA 93446

WEBSITE: CALCUSTOMPASO.COM

PHONE: 805-227-4665

Price does not include $885 freight
Price does not include $750 Setup
Sales Tax, DMV, and Doc fee extra Engine Type: Single-Cylinder
Displacement: 31.6 cu. in. (518 cc)
Bore and Stroke: Bore: 3.78 in. (96 mm); Stroke: 2.81 in. (71.5 mm)
Cooling: Liquid
Compression Ratio: 9.5:1
Fuel System: Gas
Front Suspension: Independent Double Wishbone
Front Brakes: Dual Hydraulic Disc
Front Tire: Maxxis® 24 x 8-12
Rear Suspension: Independent Double Wishbone
Rear Brakes: Hydraulic Disc
Rear Tire: Maxxis® 24 x 10-12
Wheelbase: 73 in. (1854.2 mm)
Front Travel: 5.8 in. (147.3 mm)
Rear Travel: 5.9 in. (149.9 mm)
Ground Clearance: 8.5 in. (215.9 mm)
Fuel Capacity: 4.1 gal. (15.5 L)
Box Capacity: 450 lbs. (204.1 kg.)
Towing Capacity: 1000 lb. (453.6 kg.)
Drive System: Manual / Automatic Clutch
Speedometer: Standard
Odometer: Standard
